PROVEtech:RBS by AKKA - Toolkit for LabVIEW Download

Full AUTOSAR V4.x Bus Communication Simulation in LabVIEW

* 6 ↓915

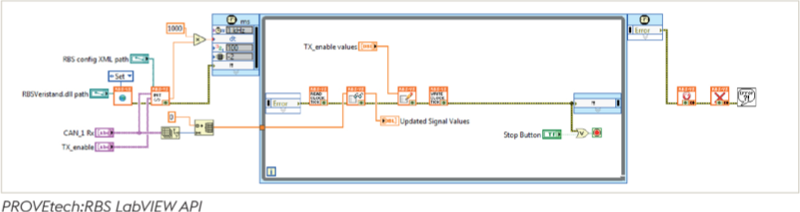

 screenshot
Version21.0.0.12
ReleasedJan 28, 2021
Publisher AKKA
License AKKA Terms of Use
LabVIEW VersionLabVIEW>=17.0
Operating System Windows
Project links Homepage

Description

Start LabVIEW and VI Package Manager with administrator privileges.

Requires NI License Manager 4.5 or later (https://www.ni.com/en-us/support/downloads/software-products/download.ni-license-manager.html).
Requires Microsoft Visual C++ Redistributable für Visual Studio 2015, 2017 und 2019 (https://support.microsoft.com/de-de/help/2977003/the-latest-supported-visual-c-downloads)

- Provides a solution for automotive bus communication for LabVIEW
- Supports CAN, CAN-FD, Automotive Ethernet (SOME/IP, SOME/IP-SD), LIN, and FlexRay
- Supports event-based and time triggered communication
- Supports different bus description format files: .dbc, .ldf, and AUTOSAR XML
- Deployable on all NI targets (Windows, PharLap, NI Linux Real-Time) with NI-XNET bus interfaces
- Offers short integration and configuration times

NOTE - Usage on Real-Time system:
Installation
1. Start VIPM and LabVIEW both as Administrator
2. Install .vip
3. Copy "C:\Program Files\National Instruments\RT Feeds\provetechrbs-api_x.x.x.x_x64.ipk" to "/home/admin" on RT system using SFTP tool
4. Make sure RT target is connected to internet
5. SSH into target, run: opkg install provetechrbs-api_x.x.x.x_x64.ipk
6. Reboot RT target
7. For NI real-time targets an additional license is used.
a. Run *Examples\Signals Single Point CAN.vi* in a new real-time project. This will create ""/tmp/\.seed".
b. Obtain a valid license key file by emailing your RBS serial number, the desired modules (CAN, LIN, FlexRay, Ethernet) and the file "/tmp/\.seed" to provetech-rbs@akka.eu.
c. Copy a valid *.key file to "/home/admin".
d. Run example again.

Release Notes

21.0.0.12 (Jan 28, 2021)

- Support of XNET IP stack for automotive ethernet (requires XNET >= 20.5, NI PXIe-8521/8522)
- Support for LabVIEW RT (Linux x64) - ipk installer

- Updated PDF manual
- Updated Configurator
- Updated RBS Core libraries
- Improved error handling in read and write VIs
- Bugfix: License check for Ethernet and FlexRay is swapped


Install with VIPM Download Package

Note: Get VIPM Desktop to install this package directly into LabVIEW.
