Kawasaki Robotics Library by DigiMetrix - Toolkit for LabVIEW Download

Easy-to-use graphical functions for commanding and controlling Kawasaki robots directly from the NI LabVIEW graphical development environment.

Watch * 1 ↓206
ReleasedSep 27, 2021
Publisher DigiMetrix
License DM SLA
LabVIEW VersionLabVIEW>=12.0
Operating System Windows
Project links Homepage


Note: This installer requires VI Package Manager and LabVIEW to be run with Administrator privileges. To do so, close VI Package Manager and LabVIEW, right click the VI Package Manager shortcut, and select "Run As Administrator".

With the Kawasaki llibrary, you can easily integrate robots into new types of systems and applications for automated test, laboratory automation, and flexible manufacturing - eliminating complex robotics programming expertise.

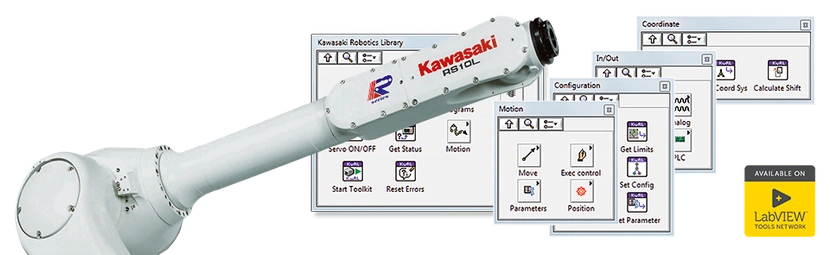

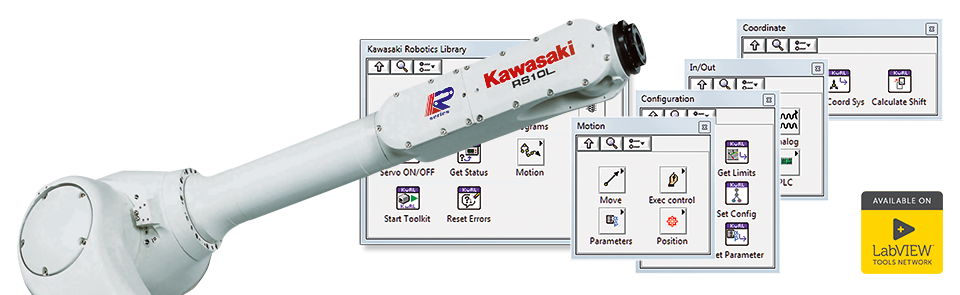

The library features easy-to-use native LabVIEW VIs for controlling and commanding robots directly from a graphical development environment. With this library, you can program a single LabVIEW application that integrates all aspects of machine control and automation from part-handling and robot control to advanced measurements, inspection, machine vision and HMI.

Using this approach, you do not need to learn specialized robotics programming software, which means you can achieve higher performance and better results in less time. The entire application is developed in NI's powerful LabVIEW Graphical Design Environment.

System Requirements

Kawasaki system requirements
• 6-axis or 7-axis robot
• D, E or F robot controller
• for D and E controller TCP connection must be available.

LabVIEW PC system requirements
• LabVIEW 2012 or above (32 & 64 bit)
• Ethernet card and Ethernet cable
• Microsoft Windows XP, Vista, 7, 8, 8.1, 10 (32 & 64 bit) or LabVIEW Real-Time

Product setup overview
No special controller setup procedure is needed - all needed files will be uploaded to the robot controller automatically at first "Open Session" call. Installation in LabVIEW is made as standard VI Package Manager Package.

Free updates are included with purchase of a license. You will receive an e-mail message once available a new release.
The latest version can be downloaded from National Instruments Corporation website or through the VIPM.

NI Discussion Forums
We appreciate your feedback and ideas on how to improve our products -- please visit NI Discussion Forum for DigiMetrix:

Need more help?
Contact DigiMetrix by e-mail or phone, we will respond to support inquiries within 48 hours!
phone: +49 (0) 89 - 20 70 42 255
fax: +49 (0) 89 - 20 70 42 256

Release Notes (Sep 27, 2021)

Version 2.0.2

Bug fixes:
- in version INRANGE check was removed in motion commands
- in version Fixed error 401883 "Unable to perform command requested" in "Open Session" on D series controllers.

When upgrading from older version (ImagingLab, latest available version
- Contact DigiMetrix for license upgrade to new generation (free);
- Review exisitng code and re-link to new version VIs.
