OpenDSS-PM Library for x86 by Electric Power Research Institute - Toolkit for LabVIEW Download

* 1 ↓96

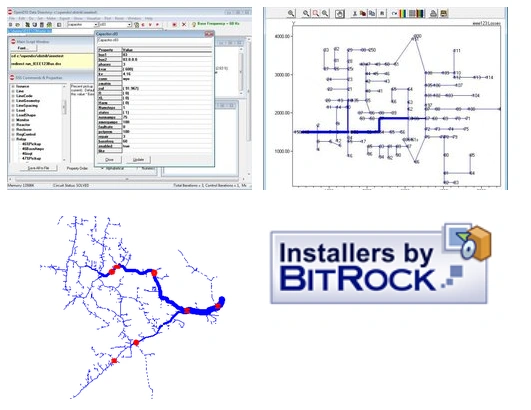

 screenshot
Version4.0.0.6
ReleasedAug 29, 2022
Publisher Electric Power Research Institute
License GNU
LabVIEW VersionLabVIEW x86>=22.3
Operating System Windows, Mac, and Linux
Project links Homepage

Description

This library enables LabVIEW users to control OpenDSS-PM (Parallel Machine Engine) using the Direct DLL interface. This version is compatible with NI LabVIEW x86. This is the base platform for allowing OpenDSS users to perform parallel computing. For installing this package and its dependencies please run VI Package manager as Administrator.

Please run VIPM and LabVIEW as administrator for installing this add-on.

Release Notes

4.0.0.6 (Aug 29, 2022)

This library enables LabVIEW users to control OpenDSS-PM (Parallel Machine Engine) using the Direct DLL interface (faster than the COM interface for this platform). This version is compatible with NI LabVIEW x86. This update includes:

- Incorporates new properties to the CktElement interface for allowing users to set/get state variables (PE elements) using it's index or name..
- Includes the most recent changes and interfaces added in OpenDSS v9.5.1
- Adds "Element" property to UPFC for triggering the reactive power compensation mode. Not needed in the past, but given the new control mode it requires it.
- Adds DOC_P1Blocking property to relays. This enables/disables a positive sequence power blocking element according to IEEE Std C57.12.44-2014.
- Solved issue introduced with long-line correction changes of rev 3464. Single-phase lines without symmetrical component definition were being affected by change.
- Adding command for getting the line type list as string for reference.
- Includes new command for checking if there is a new version of OpenDSS available for download. The same command was implemented in the GUI's menu -> Help options.
