JKI Discrete Control Systems by JKI - Toolkit for LabVIEW Download

Implements useful tools for control systems like controllers, simulators, and filters using a discrete control approach.

* 2 ↓84

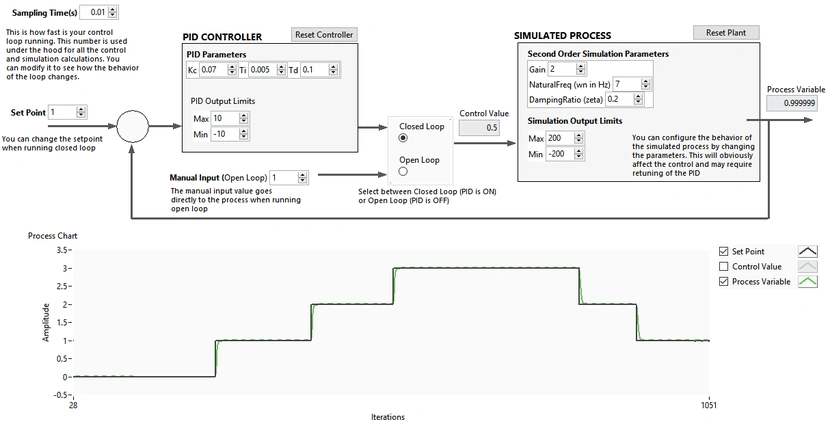

 screenshot
Version1.0.0.4
ReleasedMar 04, 2021
Publisher JKI
LicenseBSD
LabVIEW VersionLabVIEW>=15.0
Operating System Windows, Mac, and Linux
Project links Homepage   Repository

Description

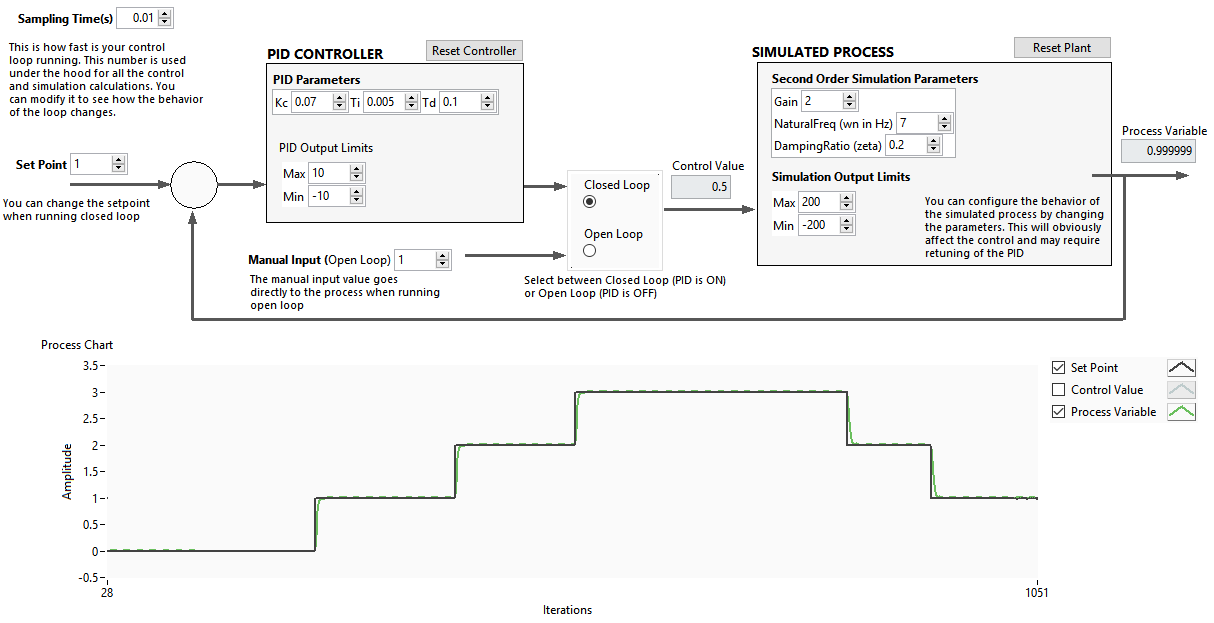

Implements useful tools for control systems like controllers, simulators, and filters using a discrete control approach. The toolkit also contains examples on how to implement regular feedback and cascade control using PIDs. There's also a low-pass filter example.

Included in this build:
- Controllers: PID, PI
- Simulator: second order process
- Filters: second order low pass
- Identification: coming soon

At JKI we develop software, architect solutions, and design user interfaces to automate, test, and control complex systems using a combination of LabVIEW and Python. Our customers include large corporations and startups in industries like automotive, energy, biotech, semicon, and aerospace. If you are interested in working with JKI or want to learn more about how we can help your company please visit http://jki.net

Release Notes

1.0.0.4 (Mar 04, 2021)

- First public build of the package

Contributors: @javier-ruiz

Install with VIPM Download Package

Note, you must have the VIPM Desktop app to install this package into LabVIEW.
