Waveform XControl by University of Leeds - Toolkit for LabVIEW Download

An XControl that provides a function generator to output a waveform type

* 1 ↓32

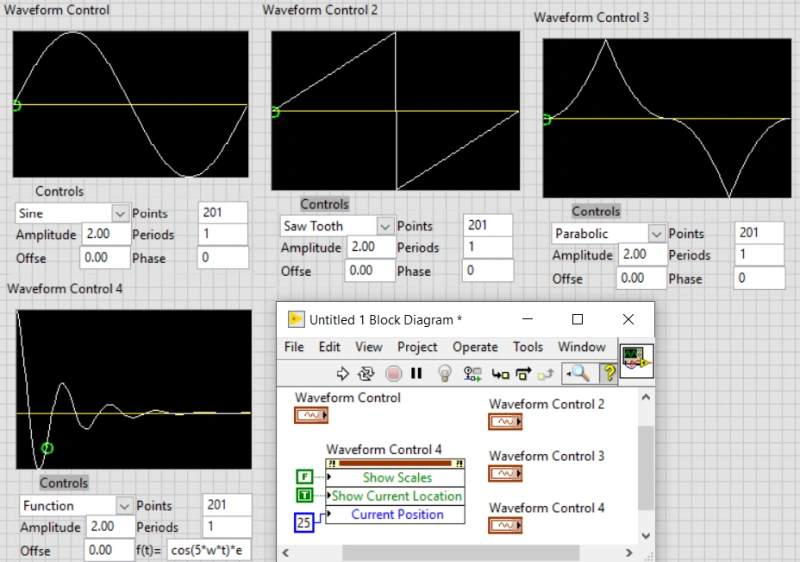

 screenshot
Version1.2.0.18
ReleasedMay 23, 2020
Publisher University of Leeds
LicenseBSD
LabVIEW VersionLabVIEW>=18.0
Operating System Windows, Mac, and Linux
Project links Homepage

Description

Provides a drop in function generator that lets the user construct and view a waveform on screen. Provides methods to hide and show an x-axis, x and y scales and to show a 'marker' on the waveform to indicate a current position or progress.

Release Notes

1.2.0.18 (May 23, 2020)

1.2.0 Add parabolic, cubic and quartic patterns to allow more data points around zero

Install with VIPM Download Package

Note, you must have the VIPM Desktop app to install this package into LabVIEW.
