SMDP Protocol by RAFA Solutions - Toolkit for LabVIEW Download

SMDP protocol LabVIEW Library.

* 0 ↓5
 logo
Version1.0.0.2
ReleasedDec 02, 2016
Publisher RAFA Solutions
LicenseEULA
LabVIEW VersionLabVIEW>=16.0
Operating System Windows, Mac, and Linux
Project links Homepage

Description

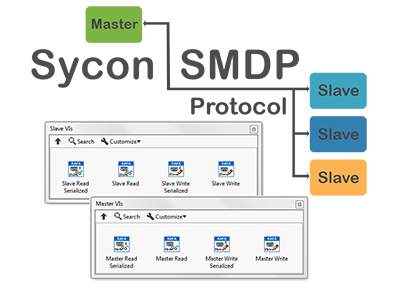

Sycon Multi Drop Protocol (SMDP) Toolkit is a library of VIs for data communication between Master and Slave devices using the SMDP protocol.

The toolkit supports Sycon Multi Drop Protocol versions 2 and 3.

SMDP Protocol LabVIEW library contains the following VIs:

Open Port - Initializes and configures serial port
Close Port - Closes session for the specified serial port
Master Read - Reads data from the slave device (used for the device in Master mode)
Master Read Serialized - Reads serialized data from the slave device (used for the device in Master mode)
Master Write - Writes the data to the device specified (used for the device in Master mode)
Master Write Serialized - Writes the serialized data to the device specified (used for the device in Master mode)
Slave Read - Reads data from the device (used for the device in Slave mode)
Slave Read Serialized - Reads serialized data from the device (used for the device in Slave mode)
Slave Write - Writes the data to the device specified (used for the device in Slave mode)
Slave Write Serialized - Writes the serialized data to the device specified (used for the device in Slave mode)

Note, VI Package Manager 2016 is required to install the package.

Release Notes

1.0.0.2 (Dec 02, 2016) no release notes for this version

Install with VIPM Download Package

Note, you must have the VIPM Desktop app to install this package into LabVIEW.
