JSONtext by JDP Science - Toolkit for LabVIEW Download

Fast JSON Library

D Discussion Watch * 27 ↓37,936
 screenshot
Version1.8.2.122
ReleasedJan 22, 2024
Publisher JDP Science
License BSD
LabVIEW VersionLabVIEW>=17.0
Operating System Windows, Mac, and Linux
Used By pnr_lib_jsontext_object_serialization   brent_justice_lib_blueplotmulti_(open_source)   tsa_lib_omni_bus   tsa_lib_lvabs_shared_variable   samangh_lib_wamplv_wamp_client   pantherlab_lib_firebase_api   ox_origin_state_machine_pipes   tsa_lib_shared_variable_bus   tsa_lib_abstract_function_classes   blue_origin_lib_runlog_opensource   petranway_labview_atlassian_api   illuminatedg_lib_ig_config   sas_lib_approval_tests   tsa_lib_behaviour_tree   blue_origin_lib_bluejsontextserializer   neosoft_technologies_lib_neosoft_dhcp_server   tag_engine   tsa_lib_abstract_data_classes   blue_origin_lib_blueplot_(open_source)
Project links Homepage   Repository   Discussion

Description

JSONtext is a library intended to make working with JSON in LabVIEW easy, fast and flexible. It is based on high-speed text parsing, and does not involve any kind of intermediate representation of the JSON (the only thing passed between functions are JSON text strings).

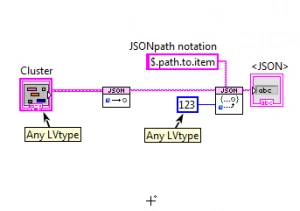

Supports searching for elements in the JSON using JSON Path notation (example '$.Users[*].Name').

Extensive support for converting to/from LabVIEW types. Can use tag in cluster element names to identify strings that should retain JSON format.

Allows formating JSON using "Pretty Print".

As extension to standard JSON, will allow Comments.

Note: On Windows 10, it may be necessary to run VI Package Manager "as an administrator" in order to install the VI Package.

Release Notes

1.8.2.122 (Jan 22, 2024)

Support for JSON Schema: https://json-schema.org/
tags support for UTF8 in LabVIEW
UTF-8 to/from JSON functions
