AntiDoc by Wovalab - Toolkit for LabVIEW Download

Tool for automatic lvproj documentation generation

* 10 ↓340
ReleasedJan 11, 2021
Publisher Wovalab
LicenseBSD 3-clause
LabVIEW VersionLabVIEW>=14.0
Operating System Windows, Mac, and Linux
Project links Homepage   Documentation   Repository


This tool parses lvproj to generate its documentation.

The document generated is a plain-text file that uses Asciidoc syntax. You can render this file as a PDF or HTML file using Asciidoctor toolchain (

Note: you can integrate Antidoc in you CI/CD process using the CLI tool provided by the additional package Antidoc CLI

Release Notes (Jan 11, 2021)

This release brings these major improvements among lots of others:

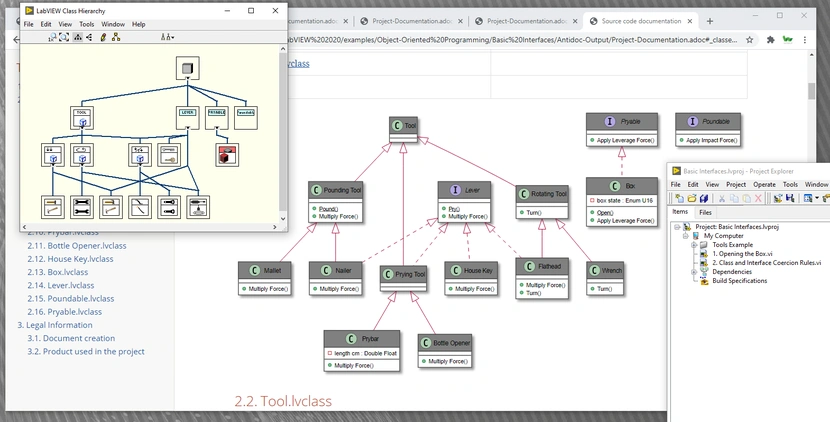

* UML Class diagram representation
* DQMH custom error listing
* multi-target support
* a much better way to display information in the final document; more useful content in fewer pages

Note what this release doesn't bring yet:
* Specific AF parsing
* Support for any kind of referenced class
* Lots of awesome features we have in mind but didn't develop yet

== New features:

. List "DQMH-like" custom errors -->
. Strip certain elements from VI descriptions -->
. Add section only if necessary -->
. Allow choosing the libraries to include in the doc -->
. Add UML class diagram representation -->
. Add support for RT targets -->
. Improve navigation in HTML file -->
. Add a way to display commit/tag in the document -->
. Improve representation of "Request and wait for Reply in graphs -->
. Allow to not describe default DQMH request and broadcast -->
. Add new document hierarchy -->
. Save/Load config in file -->
. Add a way to measure user behavior -->
. Render VI list as table -->
. End of generation dialog improvement -->
. Add version number to libraries description -->

== Changes:

. Make the "Lvlib to not" public -->

== Bug Fix :

. Memory management -->
. Module section lists own requests in "Used Request" table -->
. Do not parse nested lib/class in a lib section -->
. Image creation issue -->

Contributors: @wovalab

Install with VIPM Download Package

Note, you must have the VIPM Desktop app to install this package into LabVIEW.
